X-TRU-5551 LED Profiles are an innovative way to create your own light fixtures with LED Tape Light for ceiling or drywall with grooves. Suitable for surface mounting or recessed installation, these high quality profiles provide a unique way to make use of linear low voltage lighting and are the designer's choice for creating light fixtures for commercial and residential LED strip lighting.
The X-TRU-5551 Medium Density Fiberboard (MDF) Mounting Channel is used to hold LED tape light and allows you to create your own custom LED low voltage lighting scheme.
Please note: These profiles are only compatible with strip light 0.4 inches wide or smaller. They are compatible withThinGlow LED Strip Light.

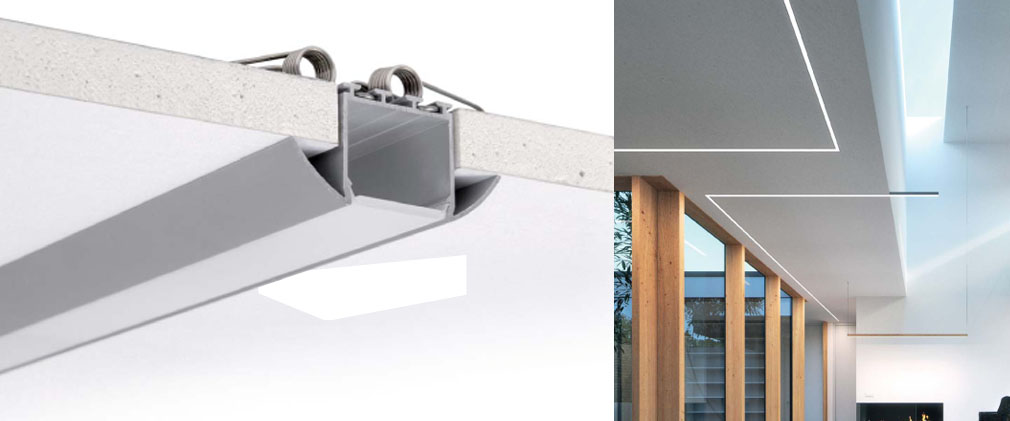

Profiles for grooves Architectural profiles for LED fixtures – dedicated to mounting on ceilings and drywall. The height of the profiles was designed so that they can produce a single line of light with two LED strips where the diodes are spaced 15mm apart and a frosted cover is used. The source of light is one or two 10 mm-wide LED strips. Surface mounting is perfomed with the use of mounting springs. During the mounting all profiles-fixtures should have power cables led to them beforehand. Power supplies can be placed loose on the left side of the ceiling or within the walls.
Length: 2m (standard), 3m *, 3 - 6m (special order) Surface finishing: anodized,
Assembly remarks The bottom side of the IL-XTRU-5551 profile does not interfere with the support structure of the ceiling or drywall. This allows mounting of the fixtures based on this profile in any direction to the existing walls and ceilings.
*available by arrangement with the sales department of Impact Lighting, Inc.
Profile | Length | Surface Finishing | Item Number |
---|---|---|---|
2m (standard) |
Anodized Aluminum |
IL-XTRU-5551 |
|
2m Cover
|
(Frosted), more rigid, perfectly flat | 17011 | |
96% Transparent, more rigid, perfectly flat | 17022 | ||
2m Cover |
(Frosted), more rigid, perfectly rounded | 00413 | |
96% Transparent, more rigid, perfectly rounded | 17006 | ||
2m Cover | (Frosted), more rigid, perfectly square | 17007 | |
96% Transparent, more rigid, perfectly square | 00415 | ||
End Cap for 17011 & 17022 cover | Plastic | 24008 | |
End Cap for 00413 & 17006 cover | Plastic | 24015 | |
End Cap for 17007 & 00415 cover | Plastic | 24020 | |
Spring for grooves | Aluminum | 00838 | |
