SPECIFICATIONS

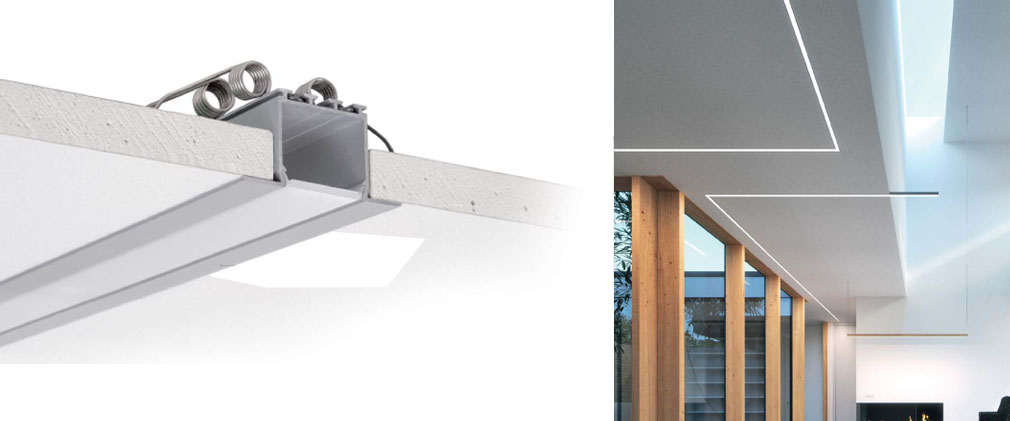

Architectural profiles for LED fixtures – dedicated to mounting on ceilings and drywall. The height of the profiles was designed so that they can produce a single line of light with two LED strips where the diodes are spaced 15mm apart and a frosted cover is used. The source of light is one or two 10 mm-wide LED strips. Surface mounting is perfomed with the use of mounting springs. During the mounting all profiles-fixtures should have power cables led to them beforehand. Power supplies can be placed loose on the left side of the ceiling or within the walls.

Length: 2m (standard), 3m *, 3 - 6m (special order) Surface finishing: anodized,

The bottom side of the IL-XTRU-5552 profile extends beyond the left side of the drywalls, interfering with the construction elements. Mounting across the ceiling structure calls for the use of additional spacer ‘bars’.

*available by arrangement with the sales department of Impact Lighting, Inc.

Profile	Length	Surface Finishing	Item Number
	2m (standard)	Anodized Aluminum	IL-XTRU-5552
	2m Cover	(Frosted), more rigid, perfectly flat	17011
		96% Transparent, more rigid, perfectly flat	17022
	2m Cover	(Frosted), more rigid, perfectly rounded	00413
		96% Transparent, more rigid, perfectly rounded	17006
	2m Cover	(Frosted), more rigid, perfectly square	17007
		96% Transparent, more rigid, perfectly square	00415
	End Cap for 17011 & 17022 cover	Plastic	24008
	End Cap for 00413 & 17006 cover	Plastic	24015
	End Cap for 17007 & 00415 cover	Plastic	24020
	Spring for grooves	Aluminum	00838
