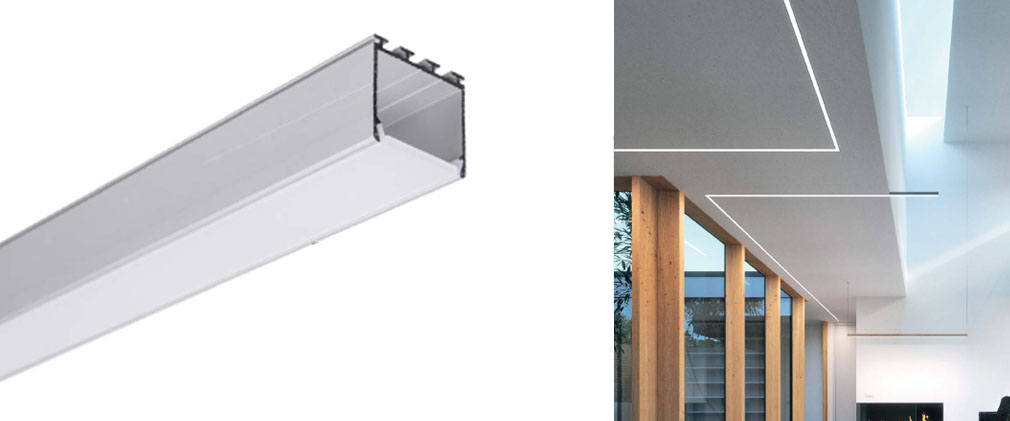

Architectural profiles for LED fixtures – dedicated to mounting on ceilings and drywall. The height of the profiles was designed so that they can produce a single line of light with two LED strips where the diodes are spaced 15mm apart and a frostedcover is used. The source of light is one or two 10 mm-wide LED strips.
Surface mounting is perfomed with the use of mounting springs. During the mounting all profiles-fixtures should have power cables led to them beforehand. Power supplies can be placed loose on the left side of the ceiling or within the walls.
Length: 2m (standard), 3m *, 3 - 6m (special order)
Surface finishing: anodized
*available by arrangement with the sales department of Impact Lighting, Inc.
Profile | Length | Surface Finishing | Item Number |
---|---|---|---|
2m (standard) |
Anodized Aluminum |
IL-XTRU-5554 |
|
2m Cover
|
(Frosted), more rigid, perfectly flat | 17011 | |
96% Transparent, more rigid, perfectly flat | 17022 | ||
2m Cover |
(Frosted), more rigid, perfectly rounded | 00413 | |
96% Transparent, more rigid, perfectly rounded | 17006 | ||
2m Cover | (Frosted), more rigid, perfectly square | 17007 | |
96% Transparent, more rigid, perfectly square | 00415 | ||
End Cap for 17011 & 17022 cover | Plastic | 24004 | |
End Cap for 00413 & 17006 cover | Plastic | 24015 | |
End Cap for 17007 & 00415 cover | Plastic | 24020 | |
Spring | Aluminum | 00293 | |
Clip | Aluminum | 24003 | |
Plastic bases | Plastic | 42712 | |
